My 24' Launch

Post by S. Weaver » Thu Sep 29, 2011 11:54 pm

Probably good to leave the "Welcome" area and come over here ...
Attachments
Steve
S. Weaver
Full Steam Ahead
Full Steam Ahead
Posts: 321
Joined: Mon Sep 26, 2011 4:23 pm
Boat Name: SL Iona

Re: My 24' Launch

Post by S. Weaver » Fri Sep 30, 2011 12:04 am

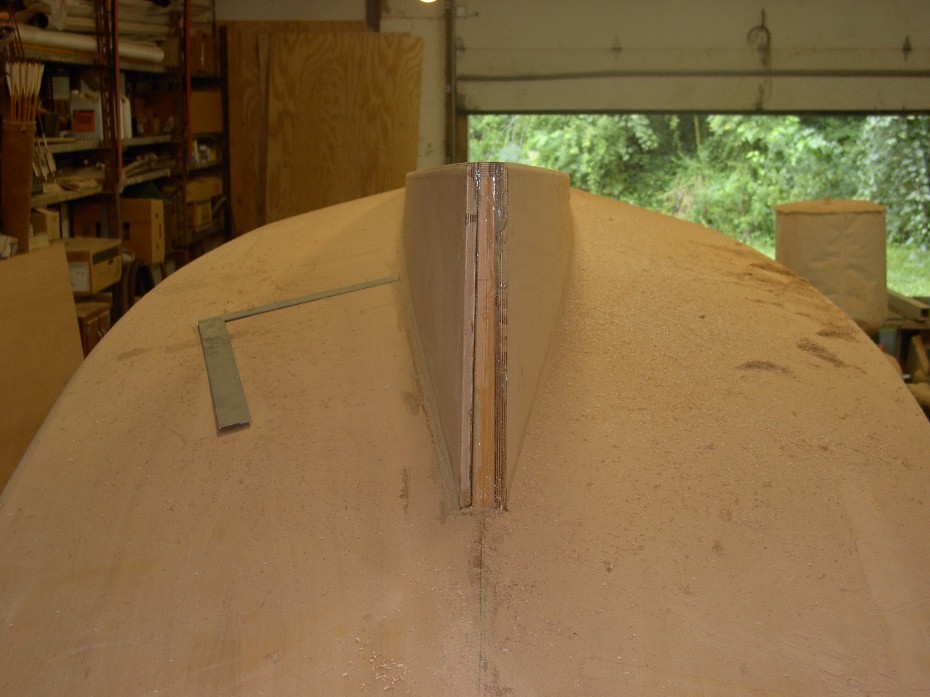

Brother John from Scotland asked about the stern tube ... Here's the view of the box keel from aft. (The box keel is a seventy year-old concept that provides strength to the hull and should help provide flotation and mitigate squat.) Boring the stern tube hole is counterintuitive. One spends over a year crafting a hull only to bore a massive hole in it. "X" does not mark the spot - I placed my pilot hole where Mr. Parker designed it ...
Attachments
Box Keel Aft resize.jpg
Box Keel Aft resize.jpg (126.06 KiB) Viewed 18174 times
Steve
S. Weaver
Full Steam Ahead
Full Steam Ahead
Posts: 321
Joined: Mon Sep 26, 2011 4:23 pm
Boat Name: SL Iona

Re: My 24' Launch

Post by S. Weaver » Fri Sep 30, 2011 12:09 am

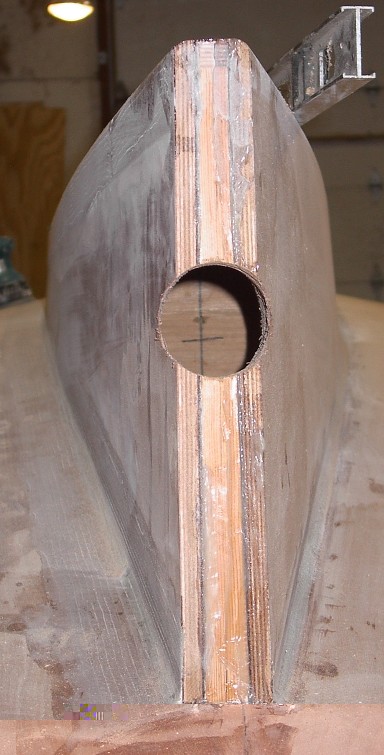

The dastardly deed is done: The photo is not quite in-line ... It looks like an owl's nest. From the photo, one doesn't get a sense of the depth of the hole and how the keel planking flanks the stern tube ...
Attachments
Stern Tube Hole resize.jpg
Stern Tube Hole resize.jpg (82.71 KiB) Viewed 18174 times
Steve
S. Weaver
Full Steam Ahead
Full Steam Ahead
Posts: 321
Joined: Mon Sep 26, 2011 4:23 pm
Boat Name: SL Iona

Re: My 24' Launch

Post by S. Weaver » Fri Sep 30, 2011 12:18 am

After the hole is finished, a stern tube "surrogate" needs to be installed in order to finish and cover the hull. The surrogate is coated with a release agent to insure it will not be a permanent fixture. Much later, after interior structure is in place, the actual tube will be installed. Both are from the same length of tube. Here's the surrogate in place ...
Attachments
Stern Tube resize.jpg
Stern Tube resize.jpg (129.08 KiB) Viewed 18174 times
Steve
S. Weaver
Full Steam Ahead
Full Steam Ahead
Posts: 321
Joined: Mon Sep 26, 2011 4:23 pm
Boat Name: SL Iona

Re: My 24' Launch

Post by S. Weaver » Fri Sep 30, 2011 12:28 am

And here's the surrogate tube after initial fairing but before before final coating and covering. You can see I don't quite trust the release agent so the tube is also wrapped in wax paper. Even with all of that, I had to whack the tube out with a mallet in order to finish dressing things. Epoxy is a fearsome thing ...
Attachments
Stern Tube Faired resize.jpg
Stern Tube Faired resize.jpg (114.06 KiB) Viewed 18174 times
Steve
S. Weaver
Full Steam Ahead
Full Steam Ahead
Posts: 321
Joined: Mon Sep 26, 2011 4:23 pm
Boat Name: SL Iona

Re: My 24' Launch

Post by S. Weaver » Fri Sep 30, 2011 12:35 am

By the way, the stern tube is 2" ID. This is a popular OD size for a great variety of cutlass bearing diameters since I haven't settled on a shaft diameter yet.

More anon ...
Steve
User avatar
Rainer
Full Steam Ahead
Full Steam Ahead
Posts: 305
Joined: Sun Nov 22, 2009 5:42 pm
Boat Name: Emma and Molly
Location: Hannover, Germany
Contact:

Re: My 24' Launch

Post by Rainer » Fri Sep 30, 2011 9:02 pm

Thanks for the pictures and info!

Will watch your steps carefully and repeat here in Germany with my Rami construction!

Rainer
www.steamboating.de
S. Weaver
Full Steam Ahead
Full Steam Ahead
Posts: 321
Joined: Mon Sep 26, 2011 4:23 pm
Boat Name: SL Iona

Re: My 24' Launch

Post by S. Weaver » Sat Oct 01, 2011 12:45 am

Rainer, after perusing your posts and links, it is I who should be following your methods carefully. Thanks for the encouragement!
Steve
User avatar
Rainer
Full Steam Ahead
Full Steam Ahead
Posts: 305
Joined: Sun Nov 22, 2009 5:42 pm
Boat Name: Emma and Molly
Location: Hannover, Germany
Contact:

Re: My 24' Launch

Post by Rainer » Sat Oct 01, 2011 6:12 am

Nobody is as perfect as all together - for me this is not a socialistic slogan but the truce of life. Every word you read and any picture you see will stimulate your brain for new thoughts.

Why you don't laminated the stern tube direct into the keel planking. I plan to glue it in while building the keel planking. I am much to lazzy to drill this hole...

Please read this as a question not as nagging!
Mailing is a perfect way to misunderstand people and ruine frendships for lifetime especially when you do it in a foreign language like me ;.)

Rainer
steamboating.de
S. Weaver
Full Steam Ahead
Full Steam Ahead
Posts: 321
Joined: Mon Sep 26, 2011 4:23 pm
Boat Name: SL Iona

Re: My 24' Launch

Post by S. Weaver » Sun Oct 02, 2011 11:51 pm

"Why you don't laminated the stern tube direct into the keel planking."

Good question. Clearly, this would have represented the better way for a purpose-built design. At the time of design and framing out the hull, there were many things that were unclear - which engine, floor structure, etcetera. Some of these things are still unclear. So it seemed best for me to shoot a shaft line, bore the "owl's nest," install the surrogate and laminate the actual tube in at a later date. I have much greater faith in my ability to work with epoxy than designing too far out in the future. Epoxy, like love, covers over a great many sins ...

Don't worry about your English. My German would be much, much worse.
Steve
