Re: Hand Pump Design/drawings

Post by dampfspieler »

Hi Pete,

there is also a very fine Feed water hand pump designed by David King.

I will build my pump according to this design. For the individual parts, I will use gunmetal plumbing fittings. The basic specifications are as follows:
- Bore 26 mm,
- Stroke 90 mm.

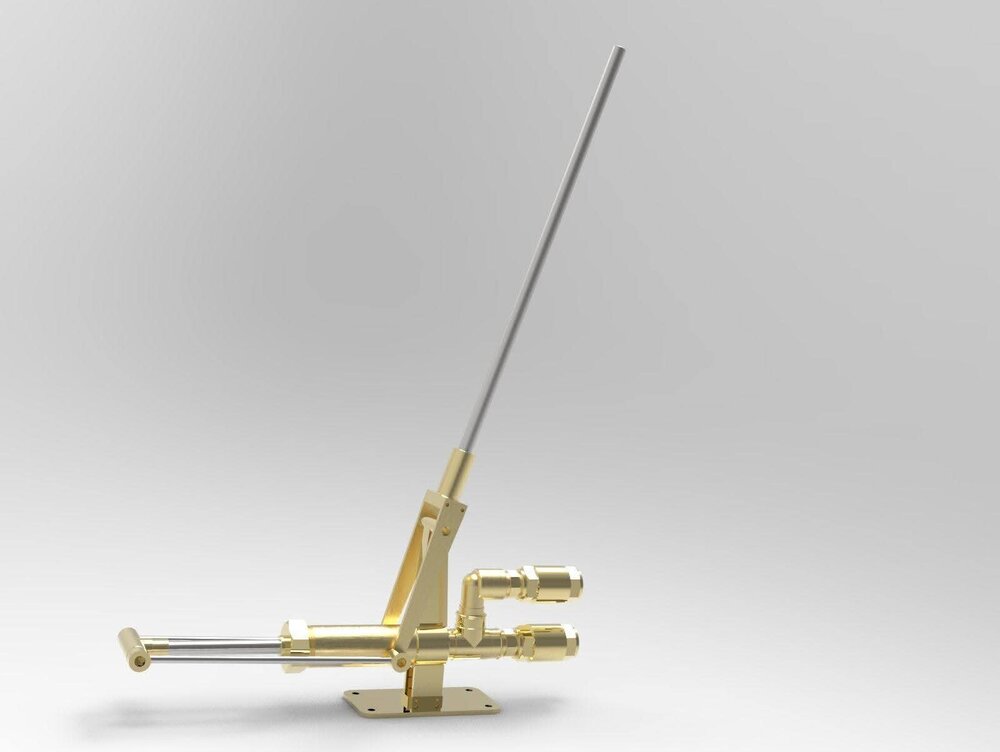

3D-CAD Rendering
3D-CAD Rendering






----
Dietrich
