This is the case when you have a defect HP valve which let enought steam through to start the LP...Mike Rometer wrote:really does not have much trouble starting without the bypass - Simpling valve.
First core box
- Rainer
- Full Steam Ahead
- Posts: 305
- Joined: Sun Nov 22, 2009 5:42 pm
- Boat Name: Emma and Molly
- Location: Hannover, Germany
- Contact:
Re: First core box
Rainer
www.steamboating.de
www.steamboating.de
- Rainer
- Full Steam Ahead
- Posts: 305
- Joined: Sun Nov 22, 2009 5:42 pm
- Boat Name: Emma and Molly
- Location: Hannover, Germany
- Contact:
Pattern Mill

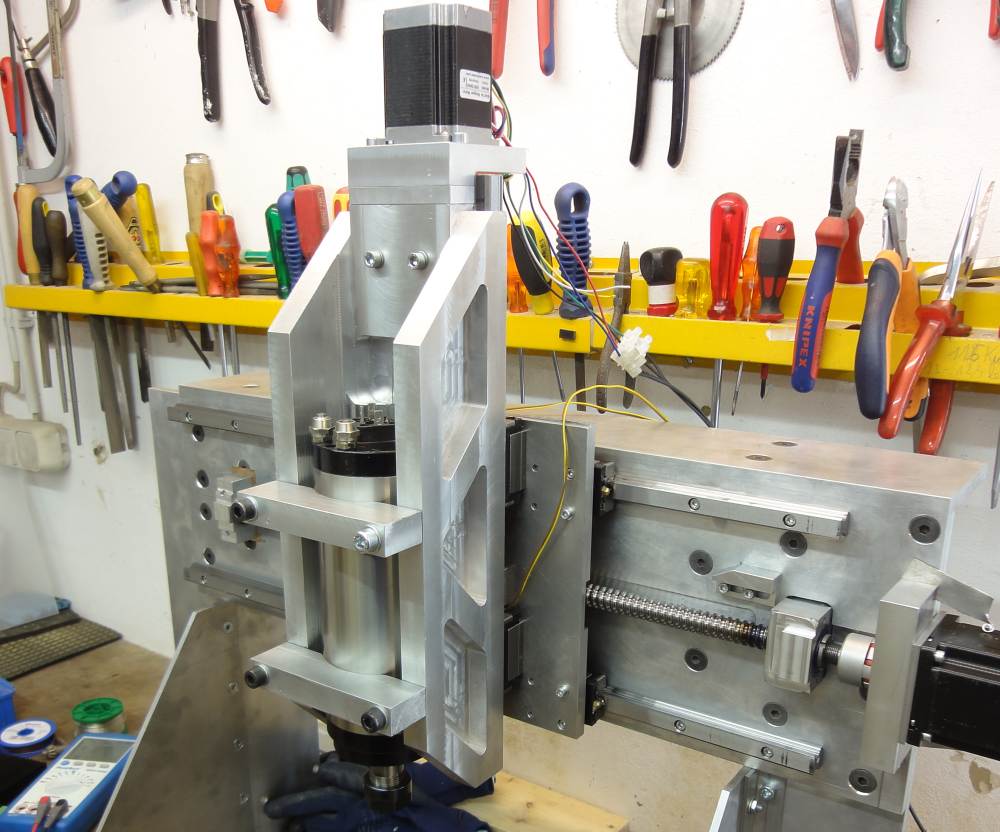

Some progress with the pattern CNC-Mill:

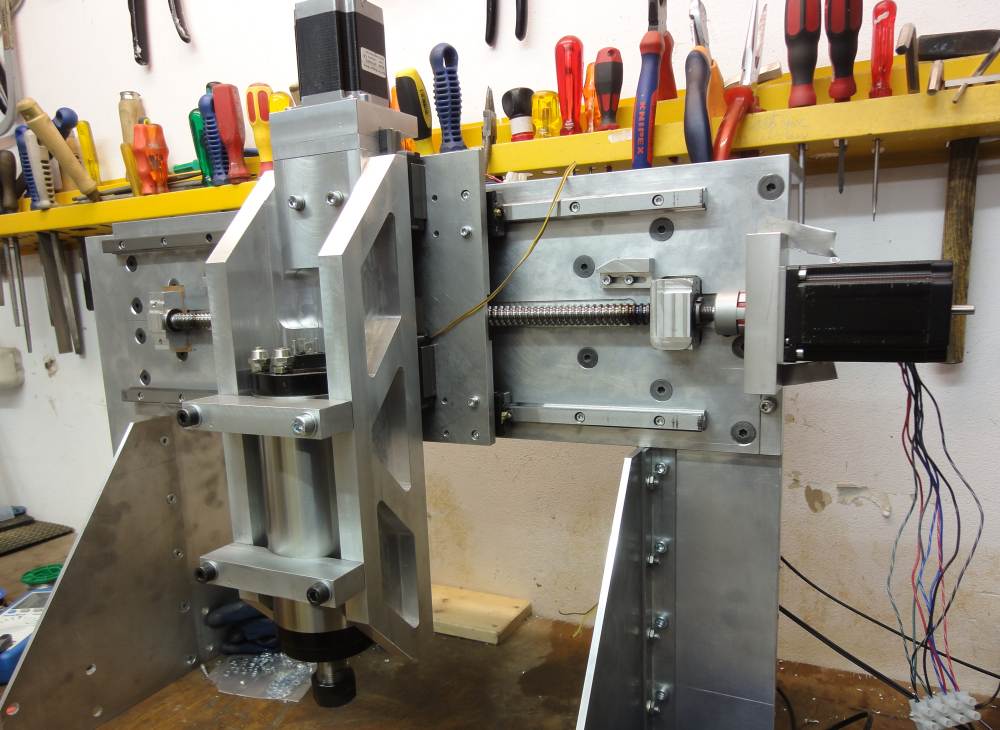

160 mm Z travel plus the possibility to move the spindel up and down in its fixture to archive the full workspace range of 200 mm unter the x-axis bridge Did all machining with my home upgraded CNC-mill.
160 mm Z travel plus the possibility to move the spindel up and down in its fixture to archive the full workspace range of 200 mm unter the x-axis bridge Did all machining with my home upgraded CNC-mill.
Rainer
www.steamboating.de
www.steamboating.de
- PatJ
- Lighting the Boiler
- Posts: 37
- Joined: Mon Mar 05, 2012 5:23 pm
- Boat Name: To be determined
- Location: Central USA
- Contact:
Re: First core box
That is a nice looking machine.
Well done.
Pat J
Well done.
Pat J
- PeteThePen1
- Full Steam Ahead
- Posts: 560
- Joined: Thu Nov 19, 2009 11:53 pm
- Location: Aberystwyth, Wales, Europe
- Contact:
Re: First core box
Hi Rainer
That looks an excellent machine. Well done!
If you should decide to build a better Mark II version, can I have the old one???
Regards
Pete
That looks an excellent machine. Well done!
If you should decide to build a better Mark II version, can I have the old one???
Regards
Pete
- Rainer
- Full Steam Ahead
- Posts: 305
- Joined: Sun Nov 22, 2009 5:42 pm
- Boat Name: Emma and Molly
- Location: Hannover, Germany
- Contact:

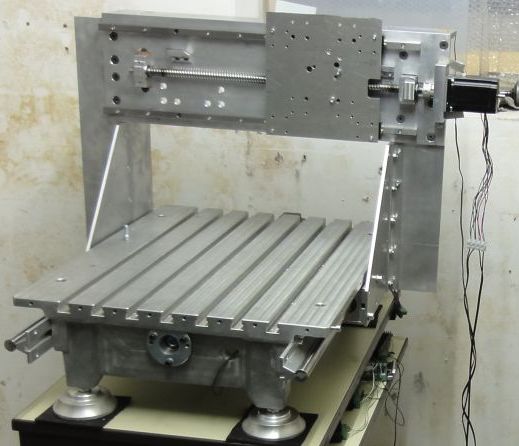

Mill
Thanks for all the warm words. Have it together and at the table. Now I have to align everything. Not a problem in the range of some +/- 0.5 mm (0.02 inch) but it should be at least one power better (= 0.05 mm/0.002inch). Therefore I have to think about an adjuster.
Rainer
www.steamboating.de
www.steamboating.de
- barts
- Full Steam Ahead
- Posts: 1072
- Joined: Wed Nov 18, 2009 6:08 am
- Boat Name: Otter, Rainbow
- Location: Lopez Island, WA and sometimes Menlo Park, CA
- Contact:
Re: First core box
If your errors are consistent, you may find it simpler to construct a error model of the device in software and do correction that way. I've used that technique to correct CMM errors with good results. If you can automate creation of the error terms, renewing the maps after disassembly (or crash!) is much easier. I used squareness terms, straightness maps (interpolated) and linear axis roll terms to compute the forward & backward kinematics of the CMM; by calibrating with a laser interferometer we were able to hold ~.005" over a 360" x 36" x 36" working envelope until the next time someone banged it with a forklift or the factory temperature changed.
- Bart
- Bart
-------
Bart Smaalders http://smaalders.net/barts Lopez Island, WA
Bart Smaalders http://smaalders.net/barts Lopez Island, WA
- fredrosse
- Full Steam Ahead
- Posts: 1911
- Joined: Fri Nov 20, 2009 5:34 am
- Boat Name: Margaret S.
- Location: Phila PA USA
- Contact:
Re: First core box
Bart, what language are you writing in? It's all "Greek to me"
- DetroiTug
- Full Steam Ahead
- Posts: 1863
- Joined: Fri Nov 27, 2009 5:56 pm
- Boat Name: Iron Chief
- Location: Northwest Detroit
Re: First core box
Rainer is using Mach3 as the CNC control program I think. It has "screw mapping" where errors can be corrected over distance and it also has "backlash compensation" where a value can be set for the amount of lost motion in traverse, the machine quickly moves across that on direction change, the positional DRO does not reflect this movement. Ideally there should be none, but that is impossible even on the most expensive most precise machines made. Real world factors like thermal expansion, friction, lines of force, deflection of components etc prevent true "zero backlash".
-Ron
-Ron
-
- Full Steam Ahead
- Posts: 186
- Joined: Sun Sep 02, 2012 2:39 pm
- Boat Name: No Boat Yet
- Location: Cathlamet, WA
Re: First core box
Sounds like it's FUZZY logic to me?
If I understand any of it, it sounds like how the roler path error on a Naval gun mount was corrected for in the fire control computer even in the day when they were all gear cam, and lever clock works.
So it's easier to write an error code for the X & Y axis than rescrape the bed, and ways! Mabe I can convert my 1917 Monarch lathe to CNC so I won't have to have the ways planed to stop it from cutting a taper?
Well it was a thought.
Dave
If I understand any of it, it sounds like how the roler path error on a Naval gun mount was corrected for in the fire control computer even in the day when they were all gear cam, and lever clock works.
So it's easier to write an error code for the X & Y axis than rescrape the bed, and ways! Mabe I can convert my 1917 Monarch lathe to CNC so I won't have to have the ways planed to stop it from cutting a taper?
Well it was a thought.
Dave
