My column-style steamengine

[dampfspieler]

Hello,

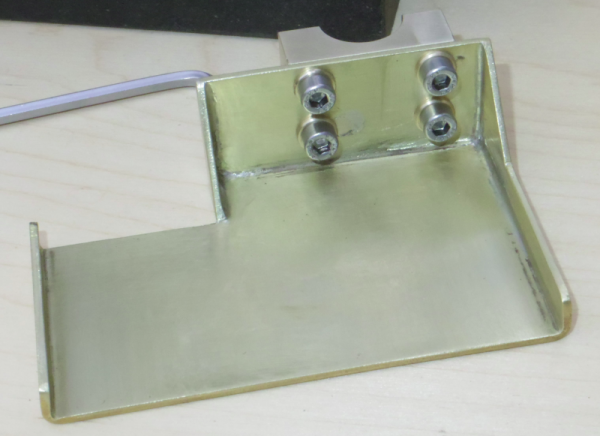

the condensers stand is ready. I have made it from 2 mm-brass sheet.

The stand

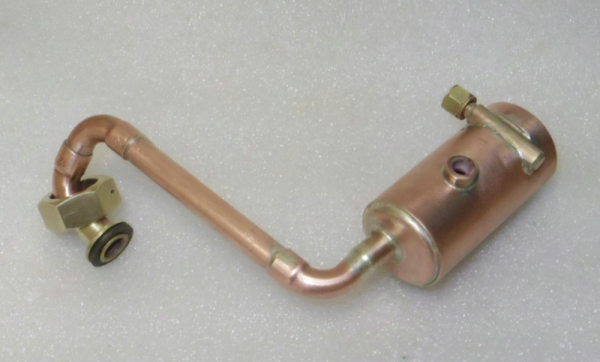

The connection hose between the condenser and condensate pump with receiver.

Best dietrich

[dampfspieler]

Hello,

the condenser is mounted. The stand with inner clamp.

The engine with mounted condenser.


Best dietrich

[RNoe]

That is a remarkably compact and clean installation.
RussN

[PeteThePen1]

A marvelous piece of work and an example to those of us are rather less skilled metal workers. Please keep going as I want to see what you plan next.

Regards

Pete

[RNoe]

I second Pete's comments.
Lets see it steaming a nice hull along the waters!

RussN

[dampfspieler]

Hi,

today I successfully tested the condenser on my steam engine. Although the connections were only hand-tight and the vacuum manometer was only connected to the condensate collection tank in front of the vacuum pump with a silicone hose, a stable vacuum could be achieved.
The "Sound of Silence" of the engine was very impressive - there was nothing to hear.

Bildschirmfoto vom 2023-08-08 16-16-43.png (390.32 KiB) Viewed 57136 times



https://youtu.be/mP2uwwiujWk


I am really happy.
--
Dietrich

[dampfspieler]

Hi,

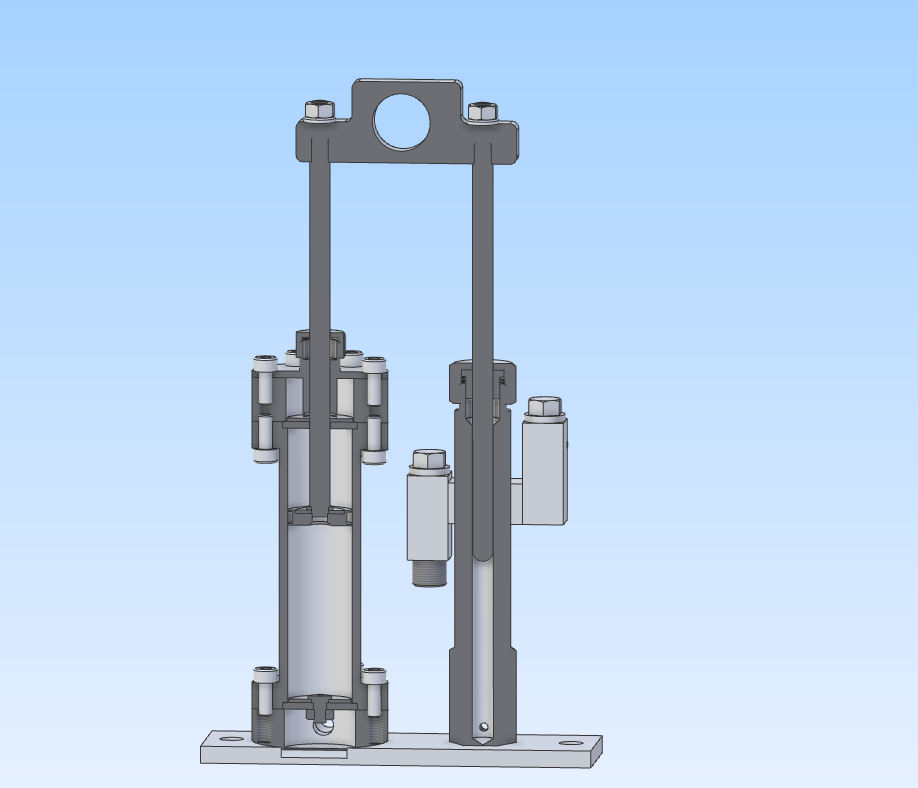

for those who might be interested in the build of the machine pump unit I show these two sectional images.



---
Dietrich

[Kelly Anderson]

That is very beautiful workmanship. Thank you for sharing!!

[dampfspieler]

Hi Kelly,

thank you for the comment.

I have redesigned the piston and its rings. There was at first one O-ring as piston-ring. To achieve a better seal, i made a new piston in which i was able to install two X-rings as piston rings.


--
Dietrich

[TahoeSteam]

Looking wonderful Dietrich. I expect you'll be seeing much improvement from the "x" rings.
