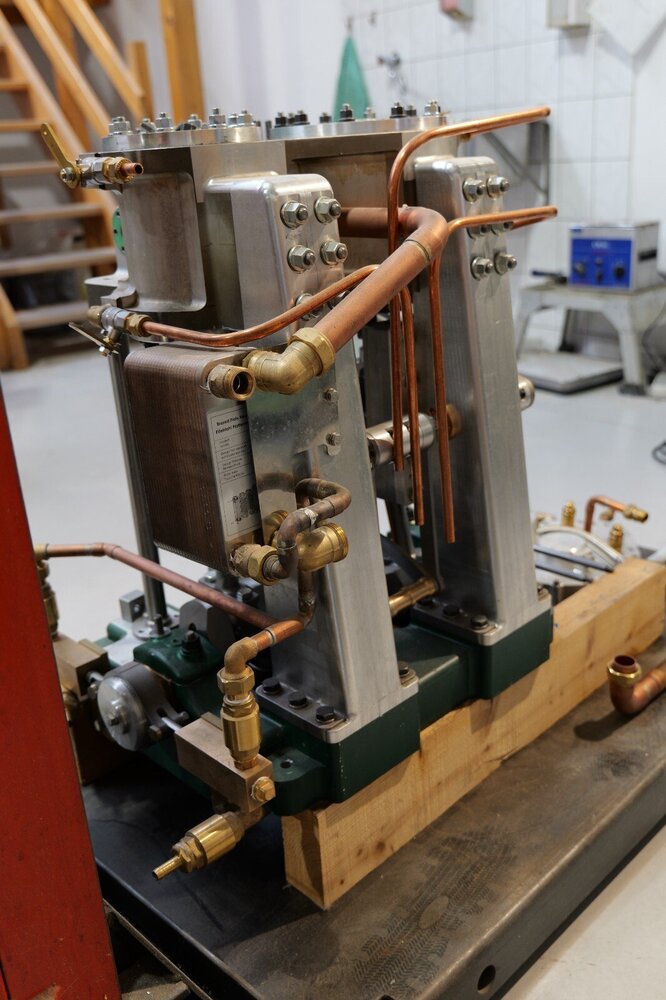

Re: My column-style steamengine

Hello Mike, ... Did you make that taper lock adaptor for your new flywheel or buy it somewhere? i have bought them Locking Assemblies BAR They are more easy to mount then taper lock fixtures. Hello CB, the operating modus is fix. If i want run the slide valve as a normal there is a bit of work nesse...
by dampfspieler
Sat Oct 19, 2019 7:42 pm
Forum: Technical - Engines and Boilers
Topic: My column-style steamengine
Replies: 27
Views: 475

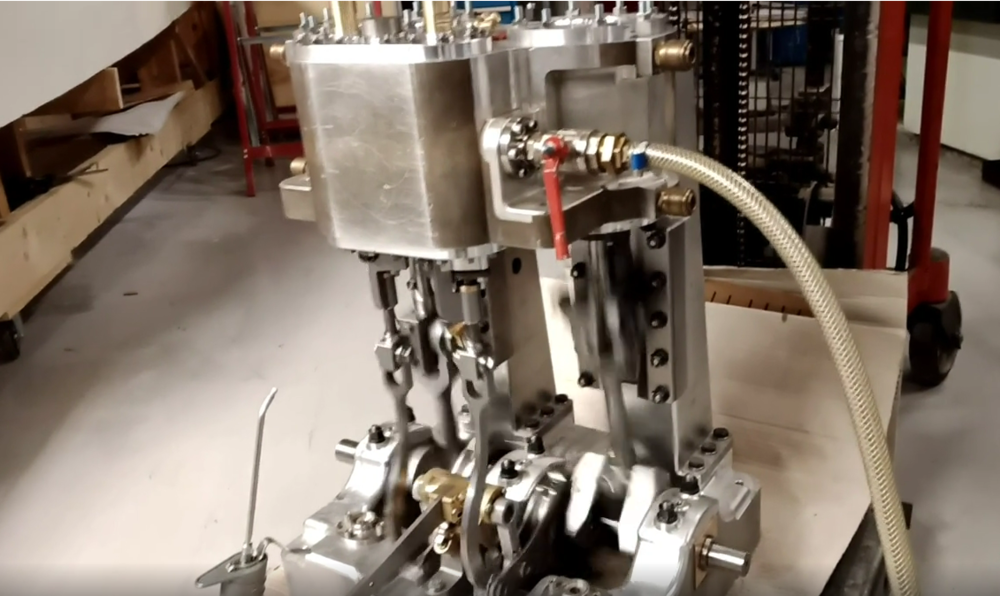

Re: My column-style steamengine

Hello, the D-valve is balanced now. The inside of the valve and the cap are connected to a duct. EinZylBoot_SchieKa103kl.jpeg EinZylBoot_SchieKa105kl.jpeg The inner side of steam chest cover. EinZylBoot_SchieKa091kl.jpeg How does it work you can see in this Video http://youtu.be/8x94ASMtXpk8x94ASMtX...
